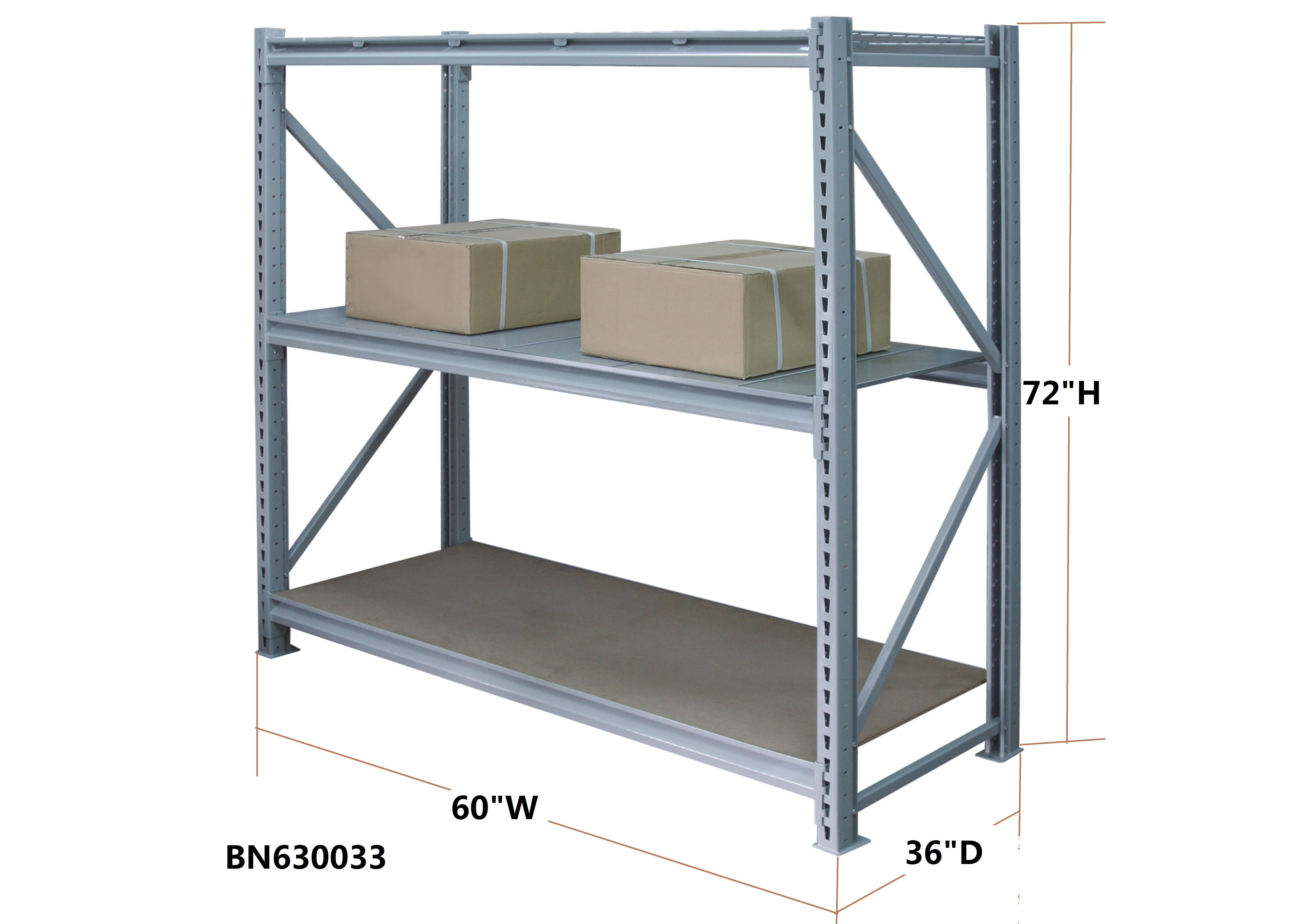

Stand Alone Heavy Duty Steel Storage Racks Warehouse Steel Shelving 60" *36" *72"

Add-on Extra Heavy Storage Rack 60 Inch Wide, 36 Inch Depth and 72 Inch High Capacity of 3800 LBs

Application

Store your heaviest, extra-wide or bulky items

Garage Storage Shelving

Up to 3,800 LBs per shelf

Description

This tough and dependable add on unit 60 inch wide x 36 inch depth x 72 inch high capacity of 3800LBs with 1 uprights, 3 pair of beams and 15 pieces of deck support, features industrial-strength welded steel frames and beams plus safety pin design for security. Optional 3 heavy-duty wire shelves adjust with beam in 2 inch increments and this bulk shelving starter unit has a 3,800 pound shelf capacity, based on evenly distributed loads. A center deck support channel provides additional support to the wire shelves. This commercial-grade shelving unit assembled in minutes with tools in the package. Made of 14-gauge steel measuring 1-3/4" x 1-3/4", these heavy duty uprights feature a gray powder coat finish. Each upright frame includes 2 upright posts and cross bracing. Upright posts include foot plates that allow rack to be bolted to the floor. Heavy duty 12 GA formed step beam, boltless design allows installation without tools or hardware and adjusts in seconds at 2 inch increments. 3 hooks at each end of the beam allow positive connection with the upright. And optional 5” x 1 ¼” non-marring polyurethane caster can be bolted to the foot plate for mobility, only for 18” wide and 72” high units.

Features

• Heavy duty 14 gauge bolted steel uprights with cross braces for maximum
• Easy assembly with tools in the package
• Deck supports drop between 2 beams to eliminate twisting under load and prevent

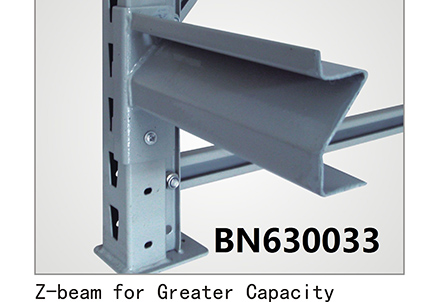

• Z shape to place beam under extra load and provide protected surface for labeling
• Keystone slots for Beam snap into place and adjust on 2" increments
• Formed front edge for easy sliding on and off
• 5/8" step recess puts decking flush with top of beam
• 3 hooks at each side of the beam assure absolute rigidity
• Welded footplates for floor mounting
• Includes 5 supports per shelf
• Optional zinc plated steel mesh 2 x 4" prevent dust and dirt buildup, maximize fire sprinkler efficiency

Specification

commercial metal shelving racks

warehouse metal storage racks

Stand Alone Heavy Duty Steel Storage Racks Warehouse Steel Shelving 60" *36" *72" Images
