Durable Heavy Duty Garage Storage Shelves , Industrial Metal Storage Shelves

Ningbo Brynick Enterprises Limited
Contact Now

Durable Heavy Duty Garage Storage Shelves , Industrial Metal Storage Shelves

Brand Name : Brynick

Model Number : BN630528

Certification : N/A

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/A, Western Union, T/T, D/P, MoneyGram, L/C

Supply Ability : 5000 pairs per 30 days

Delivery Time : 5-25 days depend on order quantity

Packaging Details : 1 set per box, and 100 sets piled on framed rack with forkliftable base

Description : Upright

Use with : Beam

Type : Formed Steel

Depth : 18 Inch

Height : 72 Inch

Material : 14 GA Steel

Contact Now

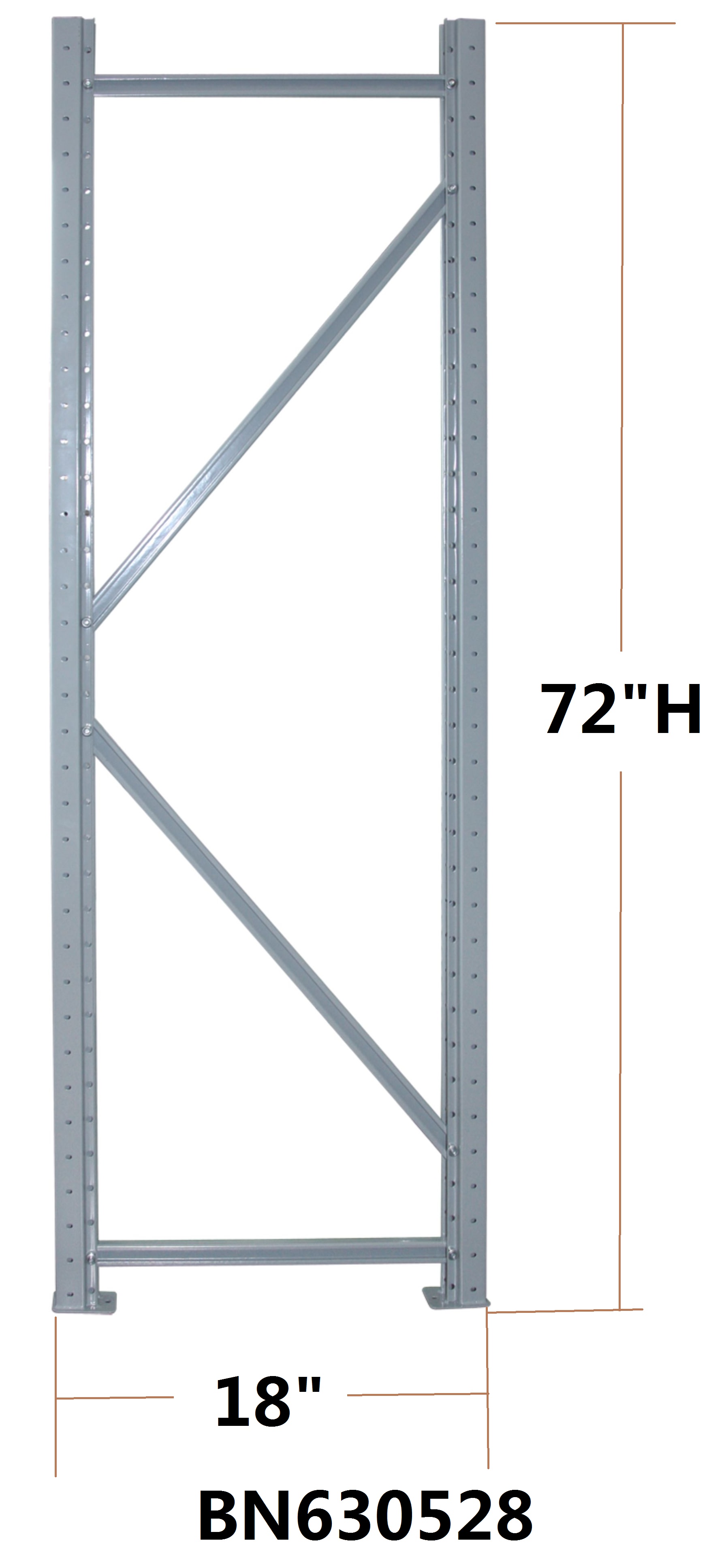

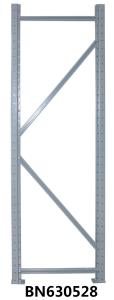

Garage Storage 18 Inch Deep and 72 Inch High Upright for Bulk Rack

Description

Made of 14-gauge steel measuring 1-3/4" x 1-3/4", these heavy duty uprights feature a gray powder coat finish. Each upright frame includes 2 upright posts and cross bracing. Upright posts include foot plates that allow rack to be bolted to the floor. This tough and dependable starter unit 60 inch wide x 36 inch depth x 72 inch high capacity of 3800LBs with 2 uprights, 3 pair of beams and 15 pieces of deck support, features industrial-strength welded steel frames and beams plus safety pin design for security. Optional 3 heavy-duty wire shelves adjust with beam in 2 inch increments and this bulk shelving starter unit has a 3,800 pound shelf capacity, based on evenly distributed loads. A center deck support channel provides additional support to the wire shelves. This commercial-grade shelving unit assembled in minutes with tools in the package. Heavy duty 12 GA formed step beam, boltless design allows installation without tools or hardware and adjusts in seconds at 2 inch increments. 3 hooks at each end of the beam allow positive connection with the upright. And optional 5” x 1 ¼” non-marring polyurethane caster can be bolted to the foot plate for mobility, only for 18” wide and 72” high units.

Application

Store your heaviest, extra-wide or bulky items

Garage Storage Shelving

Up to 3,800 LBs per shelf

Features

  • Heavy duty 14 gauge bolted steel uprights with cross braces for maximum
  • Easy assembly with tools in the package
  • Deck supports drop between 2 beams to eliminate twisting under load and prevent
  • Z shape to place beam under extra load and provide protected surface for labeling
  • Formed front edge for easy sliding on and off
  • 5/8" step recess puts decking flush with top of beam
  • Keystone slots for Beam snap into place and adjust on 2" increments
  • 3 hooks at each side of the beam assure absolute rigidity
  • Welded footplates for floor mounting
  • Optional zinc plated steel mesh 2 x 4" prevent dust and dirt buildup, maximize fire sprinkler efficiency
  • Includes 5 supports per shelf

Specification

Description Upright Frame
Part Number BN630528
Use With Beam
Type Formed Steel
Depth 18 Inch
Height 72 Inch
Material 14 GA Steel
Assembly Unassembled
Color Grey
Finish Powder Coated
Shelf Adjustments 2"
Include Hardware and Tool
Package Flat in Box
Original China

Durable Heavy Duty Garage Storage Shelves , Industrial Metal Storage Shelves
