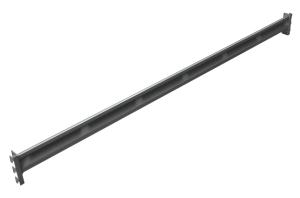

Adjustable Heavy Duty Steel Shelving Units 12 Ga Z Formed Beam 60 Inch Long

12 Ga Heavy Duty Z Formed Beam 60 Inch Long Capacity of 3,800 Lbs

Description

Heavy duty 12 GA formed step beam, boltless design allows installation without tools or hardware and adjusts in seconds at 2 inch increments, packed by 2 pieces in shrink plastic. 3 hooks at each end of the beam allow positive connection with the upright. This tough and dependable starter unit 60 inch wide x 36 inch depth x 72 inch high capacity of 3800LBs with 2 uprights, 3 pair of beams and 15 pieces of deck support, features industrial-strength welded steel frames and beams plus safety pin design for security. Optional 3 heavy-duty wire shelves adjust with beam in 2 inch increments and this bulk shelving starter unit has a 3,800 pound shelf capacity, based on evenly distributed loads. A center deck support channel provides additional support to the wire shelves. This commercial-grade shelving unit assembled in minutes with tools in the package. Made of 14-gauge steel measuring 1-3/4" x 1-3/4", these heavy duty uprights feature a gray powder coat finish. Each upright frame includes 2 upright posts and cross bracing. Upright posts include foot plates that allow rack to be bolted to the floor. And optional 5” x 1 ¼” non-marring polyurethane caster can be bolted to the foot plate for mobility, only for 18” wide and 72” high units.

Application

Store your heaviest, extra-wide or bulky items

Garage Storage Shelving

Up to 3,800 LBs per shelf

Features

• Heavy duty 14 gauge bolted steel uprights with cross braces for maximum
• Easy assembly with tools in the package
• Deck supports drop between 2 beams to eliminate twisting under load and prevent
• Z shape to place beam under extra load and provide protected surface for labeling
• Formed front edge for easy sliding on and off
• 5/8" step recess puts decking flush with top of beam
• Keystone slots for Beam snap into place and adjust on 2" increments
• 3 hooks at each side of the beam assure absolute rigidity
• Welded footplates for floor mounting
• Optional zinc plated steel mesh 2 x 4" prevent dust and dirt buildup, maximize fire sprinkler efficiency
• Includes 5 supports per shelf

Specification

commercial metal shelving racks

warehouse metal storage racks
